Welding wire

Other dimensions on request.

Show technical data

Plastic spools

Spool type D [mm] d [mm] d1 [mm] Lw [mm] Lg/La [mm] Content [kg]
K 500 500 315 127 180 250 30.0*
S 200 200 105 51.5 45 55 2.0
S 300 300 212 51.5 91 103 6.0

* = for layered spooling 40.0 kg

Metal spools

Spool type D [mm] d [mm] d1 [mm] Lw [mm] Lg/La [mm] Content [kg]

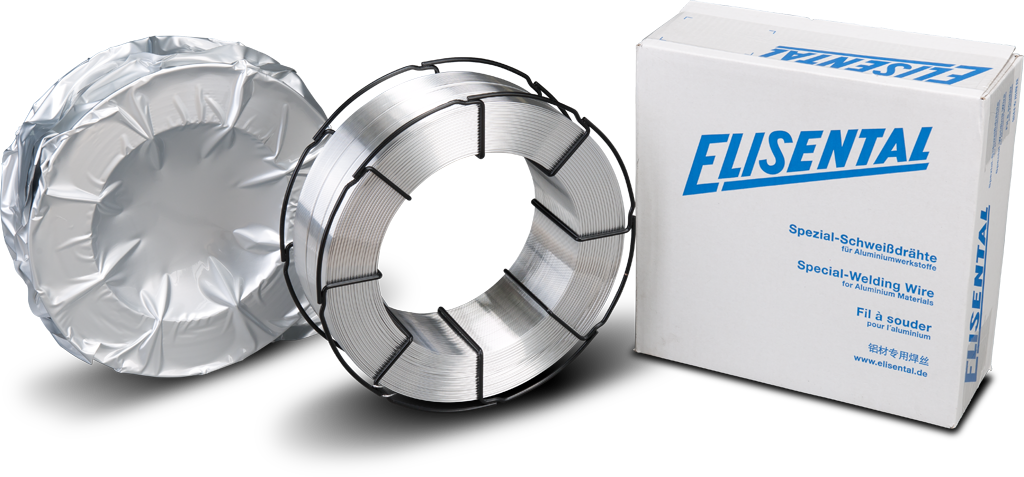

B 300** 300 188 180 90 100 7.0
BS 300** 300 188 51.5 90 100 7.0
B 400** 400 188 180 200 212 40.0
B 435** 435 308 300 90 100 15.0

** = basket ring coil, coated

D = flange diameter
d = core diameter
d1= drill hole
Lw= winding width
Lg = total spool width
La = spool mounting width
All dimensions are typical values

Show technical data
Drum type Design Ø core
d [mm]
Ø outer
D [mm]
Outer dimen.
B x T [mm]
Drum height
h [mm]
Filling weight [kg]
Square drum   - - 600 x 600 880 max. 140
Round drum A With metal handle or
as all paper drum
with hand holes
300 500 - 800 max.   80
Round drum B With metal handle or
as all paper drum
with hand holes
300 580 - 890 max. 140

Further drum types on request.

D = outer diameter
d = core diameter
h = drum height
All dimensions are typical values

B = drum width
T = drum depth
h = drum height
All dimensions are typical values
